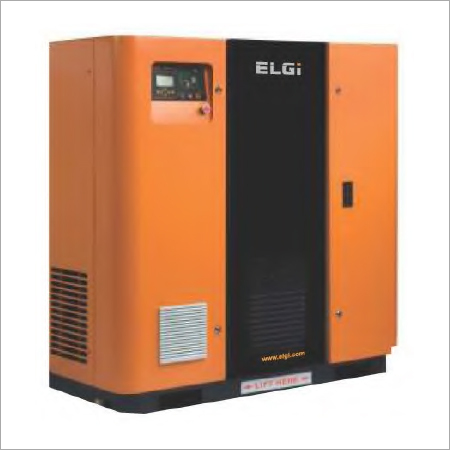

Screw Air Compressors

Screw Air Compressors
Screw Air Compressors
Product Code : SEC - 91
Brand Name : SERVICE EQUIPMENT COMPANY
Product Description

Screw Air Compressors

The EG Series compressors represent a giant leap in design and performance with each component designed for reliability and ease of maintenance.The compressor is manufactured in compliance with applicable international standards (UL, ASME, CE and others) and designed as per the international quality standards These new generation compressors significantly reduce operating costs and provide cost savings with fast return on investment.

High volumetric efficiency

  • Low energy cost per cfm
  • Advanced Neuron II Controller (Remote management of compressor operations)
  • Ready for SCADA/DCS
  • Highly efficient super breed Eff1 Motor
  • Energy cost savings
  • Option of in-built Dryer and VFD
  • Compact and saves floor area.

Save Energy

Highly Efficient Airend

Elgi's airends are equipped with in-house developed eta-V profile rotors, With 4/5 lobe combination, the rotors are designed to run at optimum speeds. This unique design reduces pressure losses and increased efficiencies. The rotors ensure energy-efficient compressed air supply for all demanding applications.

  • Precise rotor clearances for best in class energy efficiency.
  • Low operating speeds for long life, low maintenance and low sound level
  • Complied with applicable safety standards

Reduced Starting Load

Intake Valve System

The new generation intake valve with integrated blow down unit, solenoid controls and actuators is designed for low losses. Intake valve optimally controls the compressor capacity during startup reducing the no-load power. This Optimal Capacity Control results in direct savings on power consumption.

Oil-Less Air (lppm)

Efficient air-oil separation with OSBIC(3 Stages)

Elgi has applied unique OSBIC process (Oil Separation By Impact and Centrifugal action) which enables efficient separation of air and oil, with minimum pressure drop.The method enables separation of oil in three stages, delivering consistent oil-free air while increasing the life of separator element

Moisture-Free Air

99% Water Free

Depending on the humidity level of inlet air, bulkwater remains in compressed air at varying levels and causes corrosion of piping, end tools, machinery and valves. Global Series air compressor has a custom-designed centrifugal type moisture separator with an automatic timer controlled drain. This comes as a part of the package at no extra cost and removes over 99% of bulk water from the compressed air, resulting in corrosion free, longer life of en d use equipments and less load on the dryer.

Cool Air

Efficient air cooling

The cooling system with fans and larger cooling surface area enhances the cooling of hot air.The fan motor uses significantly low power. The integrated fan-motor assembly maintains low temperature there by increasing the life of motor.

Smart cooling system design enables easy maintenance and ducting. More over, the complete system is insulated internally from other zones.

Robust and Reliable

Reliability under extreme conditions

EG series compressors are designed to perform at extreme temperatures – from cold to hot and from dry to extremely humid conditions

Performance Control System

  • Built-in Dryer Dew Point integration
  • VFD Parameter (Power, HMR, Frequency, Ampere, Voltage)
  • Read out and closed loop control
  • Selectable AO (Pressure/Temperature/Dew Point) for DCS integration
  • Controlled drain system

Reports

  • Cumulative Report (Run Hours, Load Hours, Unload Hours, Stop Hours, Fault Hours and remaining AFCT, OFCT, OSCT, OCT and RGT)
  • Detail Report - Previous 15 Days (Load Hours, Unload Hours, Stop Hours, Fault Hours, and Number of times machine stopped due to standby)
  • Fault Report - (Previous 99 Faults in chronological order with Real Time stamping and type of fault)

Remote Monitoring

  • DCS (MODBUS RTUIRS 485): Controller is enabled to synchronize with Distributed Control System - control of compressor from control panel of customer
  • SCADA : Compressor control through PC with remote monitoring by Supervisory Control And Data Acquisition process

Safety and Protection

Global Series compressors are designed and perfected to ensure highest level of safety for

  • Pressure regulating valve
  • High pressure
  • High temperature
  • Pressure relief valve
  • Phase order and single phase

Compressor Near Point of Use

Compressors can be placed anywhere in assembly area without any special foundation

  • Low Sound
  • Low Vibration
  • Compact

Accessories

Airmate Particulate Filter

  • Air Flow : 35 - 3,200 cfm (1 - 90 m2/min)
  • Working Pressure : 100 - 190 psig (7 - 13 bar g)
  • Filtration Range: 1 - 0.003 microns

Airmate Air Receiver

  • Capacity: 250 - 10000 ltrs
  • Working Pressure: 100 - 190 psi g (7-13 bar g)
  • Code of Construction: ASME sec. VIII Div. I or IS 28

Automatic Compressor Sequencing Controller

The master controller can manage up to 12 positive displacement compressors including compressors of different capacities, different types (fixed speed, variable speed and variable capacity) and in any combination or configuration.

Drain Valves

  • Timer controlled and zero loss
  • Capacity: up to 2000 cfm
  • Working Pressure: 7-13 bar g

After Sales Solutions

A wide range of After Sales products and services is designed to add maximum value for our customers. Our fast serviceability ensures optimum availability and reliability of the compressors with the lowest possible operating costs.

Genuine Spares and Service

Elgi Genuine Spares helps in avoiding unexpected compressor failures and the risk of consequential damage to other vital compressor components.Elgi spares are designed, manufactured and checked for quality to meet the standards of a new compressor.The spares undergo continuous improvement to provide best results and are available through the vast network of Elgi dealers in India and International markets

Elgi Air Audit


Elgi Air Audit helping in improving the performance of the compressors by identifying the areas of wastage in the system. Elgi's air audit services are offered in areas including generation, distribution and demand side systems.

Air/Oil Flow Diagram

  • Air Intake Filter
  • Suction Control Valve
  • Airend
  • Drive Coupling
  • Electric Motor
  • Air-Oil Separator Tank
  • Minimum Pressure Valve
  • Cooling Fan
  • After Cooler
  • Moisture Separator
  • Automatic Drain
  • Outlet Valve
  • Oil Cooler
  • Air-Oil Separator
  • Oil Filter (spin-on)
  • Thermal Valve Unit
  • Cooled Air
  • Hot Air
  • Cooled Oil
  • Hot Oil
  • Hot Air/Oil Mixture


Superior Air Quality

In-built air treatment (optional)

In-built Elgi Airmate Refrigerant Air Dryer*

The in-built Elgi Refrigerant Air Dryer uses eco-friendly refrigerant and its optimal design meets dew point range of 3°C - 7°C. The design ensures safety with minimum pressure drop and maximum thermal efficiency. Dryer designs meet ISO 8573 standards for performance.

Designed for high inlet ( 55°C) and ambient (45°C) temperatures

  • Energy efficient rotary gas compressor
  • 3 in 1 Heat exchanger bringing in efficiency and compactness to dryer package.
  • Internally Grooved Condenser which increases heat transfer efficiency and brings compactness to the package
  • Energy loss due to pressure drop is nil
  • Non cyclic control ensuring stabilized dew point for various input load
  • Eco-friendly gas - R407C keeps environment unpolluted
  • Single door access for routine check up and preventive maintenance

*Please contact Elgi's nearest sales office for integrated dryer options

Energy Saving -The CONSERVE Way

In-Built ELGI Conserv® Variable Frequency Drives (VFD)

Matches compressor output with demand by varying motor speed. The power consumption reduces in line with the reduction in demand. Helps in eliminating the frequent load-unload cycle and also the wasted power from the energy bill.

A fixed speed compressor operates on a load unload band of at least 10 psi around the working pressure whereas with Elgi VFD, compressor can be operated within a band of 2 psi. Since the compressor is not operated under higher than working pressure requirements, there is substantial energy saving. For every 2 psi reduction in operating pressure, there is 1% power saving.

In a fixed speed compressor with Star-Delta starter, starting current is as high as three times the full load current (FLC). With Elgi VFD starting, starting current is less than the FLC. This helps to avoid using heavy rated components like fuses, MCCB, cable size, generator rating, isolators etc.

For compressed air systems with fluctuating demand pattern, giving a fast return on investment

Advantages:


Electrical:

  • Low starting current
  • High efficiency
  • Improved power factor
  • Reduced maximum demand

Mechanical:

  • Minimum maintenance
  • Smooth start
  • Smooth control

Technical Specification

50 Hz

KW

HP

M3/min

Cfm

Bar g

Psi g

Bar g

Psi g

Kg

dB(A)

EG 11-7.5

11

15

2.08

73.5

7

102

7.5

109

534

69

EG 11-8.5

11

15

1.84

65.0

8

116

8.5

123

534

69

EG 11-10

11

15

1.70

60.0

9.5

138

10

145

534

69

EG 11-13

11

15

1.39

49.0

12.5

181

13

189

534

69

EG 15-7.5

15

20

2.72

96.0

7

102

7.5

109

630

69

EG 15-8.5

15

20

2.57

91.0

8

116

8.5

123

630

69

EG 15-10

15

20

2.27

80.0

9.5

138

10

145

630

69

EG 15-13

15

20

1.95

69.0

12.5

181

13

189

565

69

EG 18-7.5

18

25

3.39

120.0

7

102

7.5

109

680

69

EG 18-8.5

18

25

3.17

112.0

8

116

8.5

123

680

69

EG 18-10

18

25

2.78

98.0

9.5

138

10

145

680

69

EG 18-13

18

25

2.27

80.0

12.5

181

13

189

600

69

EG 22-7.5

22

30

3.96

140.0

7

102

7.5

109

700

69

EG 22-8.5

22

30

3.85

136.0

8

116

8.5

123

700

69

Length : 1700mm Breadth : 1100mm Height : 1570 mm

EG 30-7.5

30

40

5.74

203.0

7

102

7.5

109

1068

68

EG 30-8.5

30

40

5.09

180.0

8

116

8.5

123

1068

68

EG 30-10

30

40

4.84

171.0

9.5

138

10

145

1068

68

EG 30-13

30

40

3.88

137.0

12.5

181

13

189

1068

68

EG 37-7.5

37

50

7.08

250.0

7

102

7.5

109

1130

68

EG 37-8.5

37

50

6.39

226.0

8

116

8.5

123

1130

68

EG 37-10

37

50

5.78

204.0

9.5

138

10

145

1130

68

EG 37-13

37

50

5.01

177.0

12.5

181

13

189

1130

68

EG 45-7.5

45

60

8.49

300.0

7

102

7.5

109

1151

68

EG 45-8.5

45

60

7.73

273.0

8

116

8.5

123

1151

68

EG 45-10

45

60

7.08

250.0

9.5

138

10

145

1151

68

EG 45-13

45

60

5.80

205.0

12.5

181

13

189

1151

68

Length : 1961mm Breadth : 1265mm Height : 1754mm

EG 55-8

55

75

10.76

380.0

7

102

8

116

1630

69

EG 55-9

55

75

10.05

355.0

8

116

9

131

1630

69

EG 55-10.5

55

75

9.20

325.0

9.5

138

10.5

153

1630

69

EG 55-13.5

55

75

7.50

265.0

12.5

181

13.5

197

1630

68

Length : 2065mm Breadth : 1265mm Height : 1948mm

EG 75-8

75

100

14.78

522.0

7

102

8

116

2020

69

EG 75-9

75

100

13.88

490.0

8

116

9

131

2020

69

EG 75-10.5

75

100

12.74

450.0

9.5

138

10.5

153

2020

69

EG 75-13.5

75

100

11.04

390.0

12.5

181

13.5

197

2020

69
