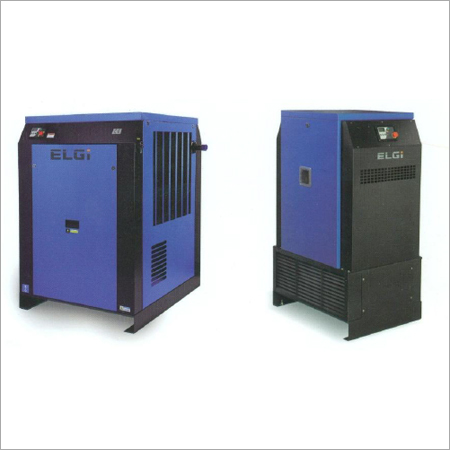

Encapsulated Air Compressors

Encapsulated Air Compressors
Encapsulated Air Compressors
Product Code : 90
Product Description

Encapsulated Air Compressors

Elgi's Encap series screw compressors are designed to encapsulate all functional components and compressor within a common housing. With its small footprint, high reliability and low maintenance requirements, the compressors are ideal for all industrial applications where size, efficiency and cost matter.

With Uptime Promise

  • High reliability
  • Energy efficient
  • Low cost of ownership
  • Ease of maintenance
  • Compact and Silent.

Encapsulated air end

The Encap series compressors are fitted with Elgi's unique airend which encapsulates all major functional systems such as intake system, compression system and separation system With in a common frame

  • Energy efficient
  • Minimal pressure drop across the system
  • Compact
  • Silent
Low cost of ownership
  • Design
  • Space saving design
  • Powered by Elgi's energy-efficient eta-V rotor profiles
  • Zero leakage due to integration of components/connections
  • Fewer parts and connections require only minimum maintenance

Operational

Longer life of consumables

Efficient air filtration system where air enters through pre-filtered enclosure. Cleaner suction air keeps the internal components of the compressor clean and maintains optimum cooling efficiency

  • Low oil fill
  • Robust cooling system in high ambient temperature
  • Air cooling in separate hot and cold zones
  • High efficiency coolers and cooling fans ensure low operating temperature
  • Improved cooling ensures longer life of compressor
Increased reliability

Designed for wide range of temperatures upto 45oC

Neuron controller

The Neuron has been custom designed and engineered as an efficient control solution for encapsulated series. The system allows you to monitor and control overall performance with easy-to-use service indications, malfunction alarms and safety shutdowns.The controller is built- in with 'service protect' modules. It also includes a service and operational log feature to provide real-time feedback and increase system productivity.

Efficient air-oil separation with (<2ppm)

The Air-Oil Separation By Impact and Deceleration action involves three stages

  • Stage 1: Impact of air-oil mixture on the tank circumferential area
  • Stage 2: Deceleration action of air-oil mixture to remove the oil particles
  • Stage 3: Air with minor traces of oil enters the spin on separator for purification

Ease of maintenance is

  • Single service door access to routine maintenance points
  • Spin-on oil filter and separator elements for fast and easy routine service
Electrical System
  • Motor
  • High efficiency TEFC / S1 / IP55 motor suited for ambient temperature up to 45°C
  • Built-in safety systems
  • CE certified to ensure high levels of safety
  • Eff1 / IE2 motor available as option

Technical Specification

50 Hz

Battery

Working pressure

FAD

Noise Level

Weight

Type of starter

Tank


KW

HP

Bar g

Cfm

M3/min

DBA

Kg

Ltrs.

EN 02

2.2

3.0

7

10.10

0.29

61

133

DOL

220

EN 02

2.2

3.0

9.5

7.50

0.21

61

133

DOL

220

EN 03

3.0

4.0

7

14.10

0.40

61

133

DOL

220

EN 03

3.0

4.0

9.5

11.00

0.31

61

133

DOL

220

EN 03

3.0

4.0

12.5

8.50

0.24

61

133

DOL

220

EN 04

4.0

5.5

7

18.30

0.52

61

143

DOL

220

EN 04

4.0

5.5

9.5

15.00

0.42

61

143

DOL

220

EN 04

4.0

5.5

12.5

12.80

0.36

61

143

DOL

220

EN 05

5.5

7.5

7

25.70

0.73

63

150

DOL

220

EN 05

5.5

7.5

9.5

21.80

0.62

63

150

DOL

220

EN 05

5.5

7.5

12.5

17.70

0.50

63

150

DOL

220

Length : 575mm Breadth : 770mm Height : 1292 mm

EN 05x

5.5

7.5

7

29.00

0.82

64

250

DOL

270

EN 05x

5.5

7.5

9.5

23.00

0.65

64

250

DOL

270

EN 05x

5.5

7.5

12.5

19.00

0.54

64

250

DOL

270

EN 07

7.5

10.0

7

39.00

1.10

64

260

DOL

270

EN 07

7.5

10.0

9.5

32.00

0.91

64

260

DOL

270

EN 07

7.5

10.0

12.5

27.00

0.76

64

260

DOL

270

EN 11

11.0

15.0

7

60.50

1.71

65

280

Star Delta

270

EN 11

11.0

15.0

9.5

49.50

1.40

65

280

Star Delta

270

EN 11

11.0

15.0

12.5

43.0

1.22

65

280

Star Delta

270

Length: 575 mm Breadth: 770mm Height: 1335mm

EN 15

15.0

20.0

7

73

2.07

66

320

Star Delta

270

EN 15

15.0

20.0

9.5

62

1.76

66

320

Star Delta

270

EN 15

15.0

20.0

12.5

55

1.56

66

320

Star Delta

270

Length: 930mm Breadth: 1150mm Height: 1450mm

EN 15x

15

20

7

89

2.52

69

520

Wye-Delta

-

EN 15x

15

20

9.5

79

2.24

69

520

Wye-Delta

-

EN 15x

15

20

12.5

64

1.81

69

520

Wye-Delta

-

EN 18

18.5

25

7

108

3.06

69

558

Wye-Delta

-

EN 18

18.5

25

9.5

93

2.63

69

558

Wye-Delta

-

EN 18

18.5

25

12.5

76

2.15

69

558

Wye-Delta

-

EN 22

22

30

7

127

3.60

69

610

Wye-Delta

-

EN 22

22

30

9.5

108

3.06

69

610

Wye-Delta

-

EN 22

22

30

12.5

92

2.61

69

610

Wye-Delta

-

EN 30

30

40

7

152

4.30

69

678

Wye-Delta

-

EN 30

30

40

9.5

127

3.60

69

678

Wye-Delta

-

EN 30

30

40

12.5

106

3.00

69

678

Wye-Delta

-

Note:

  • Free Air Delivery (FAD) is tested as per ISO 1217 : 2009 Annex C Ed.3
  • Sound level measured as per ISO 2151, Second Edition at 1m distance in field conditions,+/-3dB(A)
  • Compressors with horizontal receiver tank and dryer available as option (for models upto EN 15)
  • Weight and dimension are for the base unit
  • Due to continuous engineering improvements, the specifications are subject to change without prior notice
